wet mix plant

1865 items in Type

The mixing of concrete ingredients in a wet mix plant should be done at optimum speed.

More Details

Product Details
Related Products

Product Information

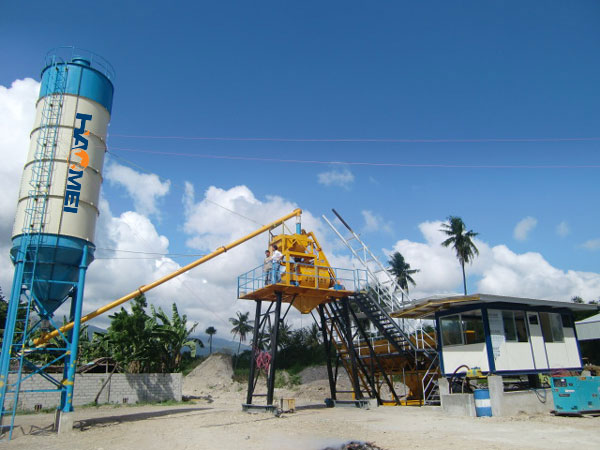

wet mix plant is a general plant to mix general materials such as plastic concrete, dry hard concrete and other mortars. It can be widely used in the establishment of commercial concrete plant production and big scale concrete plant. The wet mix plantt mainly includes weighing system, aggregate supply system, mixing system, control system, cement silo and other subsystems. The wet mix plant can be divided into stationary concrete plant and mobile concrete plant. As the name suggests, mobile concrete plant is easier to move than the stationary concrete plant. It also can be divided into the hopper type concrete plant and belt type concrete plant according to the feeding methods. What’s more, both of them have various kinds of sizes so that you can choose products according to the different requirements of matters.

Technical Parameter

Model		HZS60	HZS90	HZS120	HZS180
Global parameter	Max. productivity (m3/h)	60	90	120	180
	Discharging height (m)	4.2	4.2	4.2	4.2
	Working cycle time (s)	60	60	60	60
	Outline dimension (mm)	58445×12376 ×18704	58555×12376 ×18704	60210×13700 ×18704	62900×15000 ×19500
	Total power (kw)	105	145	210	288
Mixer	Model	JS1000	JS1500	JS2000	JS3000
Batcher	Model	PLD1600	PLD2400	PLD3200	PLD4800
Pneumatic system	Air compressor	1.5-7	1.8-7	1.8-7	1.8-7
	Discharge pressure (MPa)	0.8	0.8	0.8	0.8
	Displacement (m3/min)	1.67	1.67	1.67	1.67
	Motor power	7.5	11×2	11×2	11×2
Measurement system	Aggregate weighing accuracy	±2%	±2%	±2%	±2%
	Cement weighing	±1%	±1%	±1%	±1%
	accuracy	±1%	±1%	±1%	±1%
	Water weighing accuracy	±1%	±1%	±1%	±1%
	Additive weighing	±1%	±1%	±1%	±1%

Features and Advantages of wet mix plant

We select twin shaftconcrete mixer to ensure the mixing quality and improve the product capacity.
The wet mix plant is useful to medium or large scale construction project.
The ideas of design are focus on the safety points, high capacity and environment friendly. On both sides of aggregate feeding system and cement silos, the safety fences are prepared. Safety fences on both sides of feeding system can prevent the drop of some aggregates.The fences on the cement silos are steps to climb to the top of silos.
The arch broken system in the lower part of cement silohelps to avoid the accumulation of power and cement blockage,therefore, the productive rate will be increased.
Dust elimination system helps to reduce the pollution during working process of concrete plant. The top of thecement tank is equipped with an electric dust eliminationdevice which can effectively absorb the suspended particles in the silos. As a result, it can reduce the pollution to the surrounding environment.
Waste water treatment system also is importantto the environment. In order to protect our environment and develop the economy in healthy method, we must deal with the waste water properly; so we design our plant with the waste water system.
