self loading concrete mixer for sale
-799 items in Type
self loading concrete mixer for sale manufactured by our company match the expectations of high-quality concrete and good-performance machines for large scale .
More DetailsProduct Information

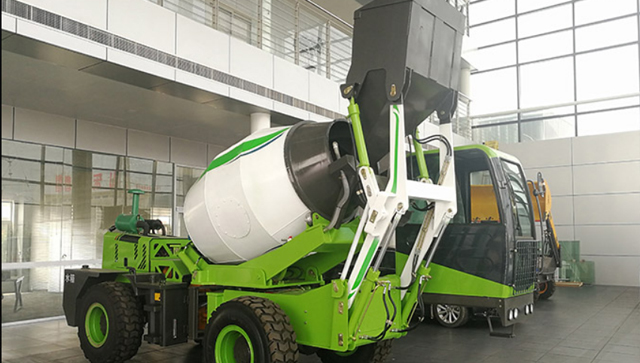

self loading concrete mixer for sale makes full use of the function of concrete mixer truck and mixing station, which realizes the automatic loading, metering, mixing and discharging of concrete. self loading concrete mixer for sale can realize the transportation of concrete at construction sites. It greatly improves the working efficiency and reduces the production time and cost. With the continuous demand of construction market, self loading cement mixer will gradually show its importance and advantages.
Equipment Model | HM3200 |
Drum geometrical capacity | 3580L |
Discharging Capacity | 3200L |
Engine Model | YCD4105 |
Rated Power | 85kw |
Gear box model | ZL-280 power shift transmission |
Gear | 4 forward 4 back |
Fuel tank | 75L |
Total hydraulic system capacity | 75 liters |
Oil tank | 16 liters |
Reducer | HJ80-43 |
Hydraulic Pump | Parker pump |
Hydraulic Motor | HAA2FM56/61W-VTD527 |
Water tank | 620L |
Water supply | Time relay |
Overall dimensions(L*W*H) | 7800*2720*3300 |
Wheelbase (mm) | 2615 |
Curb Weight (kg) | 7200 |
Drive Form | Torque converter |
Drum Rotary | 270º |
Drum Mixing Speed (r/min) | 13 |
Max.Speed (km/h) | 35 |
Maximum grade | 30º |
Maximum turning radius (mm) | 4000 |
Minimum ground clearance (mm) | 330 |
Other configuration | Air conditioner,Hydraulic water pump |
With portable self loading concrete mixer machine, you will never need to worry about transporting raw material. Moreover, self loading concrete mixer for sale vastly solve the transportation problems from ready mix concrete prepared station to work sites. It has integrated batching, weighing, feeding, mixing and delivering by itself. Meanwhile, the mixing drum can rotate at 270 degree which can enlarge the scale of shot concrete. self loading concrete mixer for sale have many applications, they can work at remote areas and narrow streets.
High Lights Of self loading concrete mixer for sale
1.At least 5 workloads are saved a day;
2.At least save electricity of 100 degree without using a concrete mixer ;
3.Flexible and strong firm off-road chassis;
4.No need of a wheel loader;
5.No need of a concrete truck;
6.12-15 minutes complete one batch;
7.270 degree can spread concrete out on the surface of ground;
Our company has specialized in producing self loading concrete mixers for many years. We always insist the concept: Quality first, Prestige first, Price in reason, Delivery in time. We have played a leading role in the concrete mixer industry. Our company has advanced technology and perfect after-sales service. The self loader concrete mixer is one of our concrete mixers.We have many hot models of self loading concrete mixer for sale . And we have many capacities of self loading concrete mixer for sale put out on the market, including 0.5 cub, 1.2 cub, 1.8 cub, 2.6 cub, 3.2 cub, 4.0 cub and 6.5 cub ,which could meet all demands of market.
