Haomei has a wide range of Mini Concrete Batch Plant for Sale in its product range, 30 ³/h to 150 m³/h which is the highest capacity on mobile concrete plants.

More Details

Product Details
Related Products

Product Information

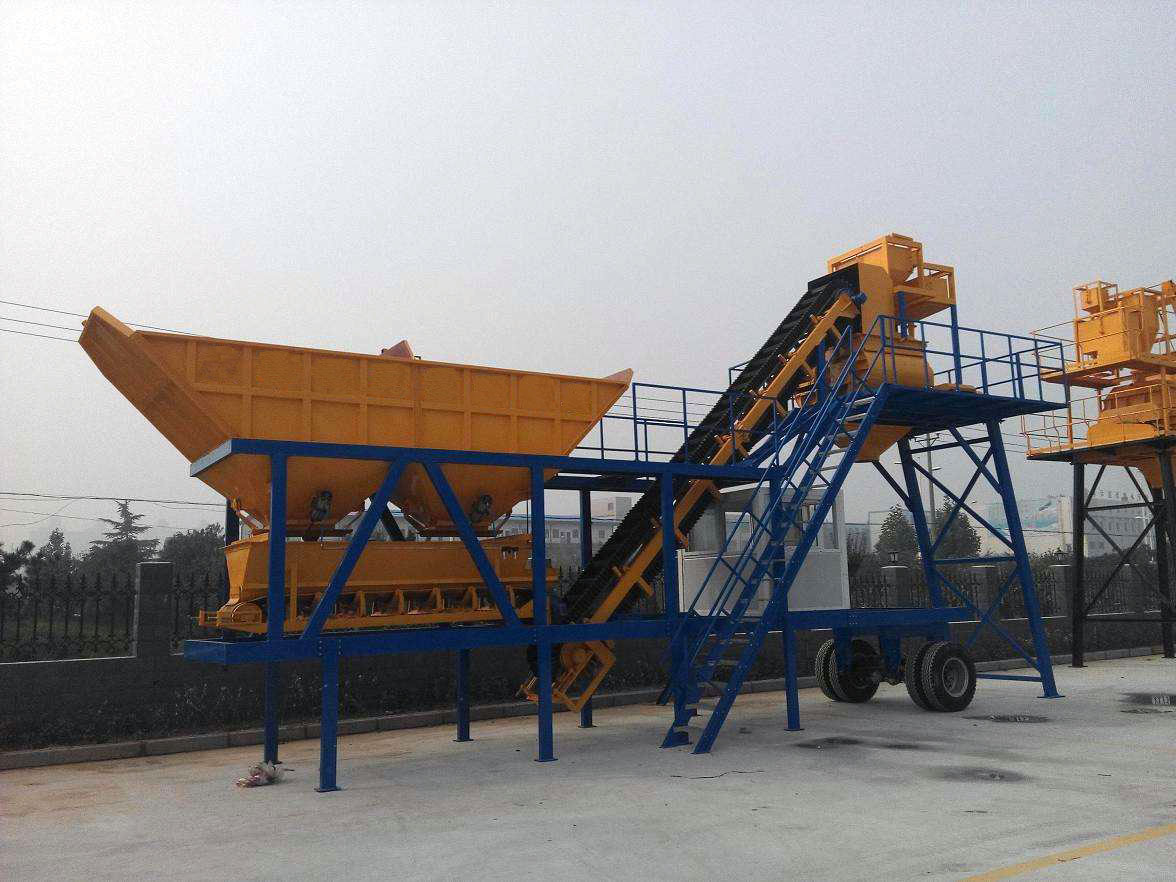

Mini Concrete Batch Plant for Sale is a kind of small size concrete plants， which is suitable for the start-up and small construction projects. Generally, 25 m3/h and 35 m3/h capacities can totally satisfy these construction requirements. The mini concrete plant includes the stationary type and mobile type. The CBP series is stationary type, MCBP series is mobile type. CBP series stationary type mini concrete batch mix plant for sale has CBP 25, CBP 35, MCBP series mini mobile concrete batching plant for sale has MCBP 25 ,MCBP 35. Mini Concrete Batch Plant for Salecan produce the concrete continuously. It has the characteristics of good performance, long service life, and stable productivity. A mini mobile concrete batching plant for sale is easy to move from one site to another， which is more suitable for the small project and need move frequently.

Technical Parameters Of Mini Concrete Batch Plant for Sale

Model	HZS60	HZS90	HZS120	HZS180
Capacity	60m3/h	90m3/h	120m3/h	180m3/h
Mixing system	Twin-shaft concrete mixer
Discharging height	3900mm	3900mm	3900mm	4000mm
After-sale service	Erection & commissioning, operator training
Warranty	12 months after erection
Concrete mixer	JS1000	JS1500	JS2000	JS3000
Discharging volume	1000L	1500L	2000L	3000L
Mixing cycle	60S	60s	60s	60s
Max. mixing size	100/80mm	100/80mm	100/80mm	120/80mm
Aggregate batching machine	PLD1600	PLD2400	PLD3200	PLD4800
Storage bins quantity	2 or 3 or 4 sorts	3 or 4 sorts	3 or 4 or 5 or 6 sorts	3 or 4 or 5 or 6 sorts
Aggregate feeding to mixer by	Belt conveyor
