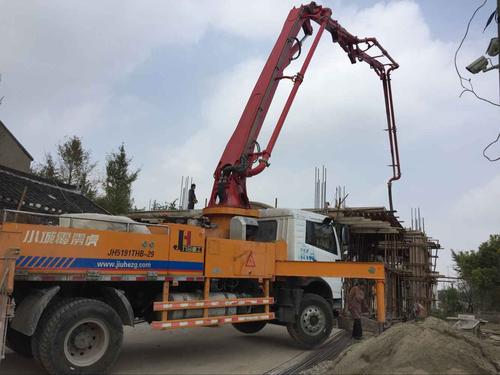

used concrete boom pump truck for sale
-1988 items in Type
used concrete boom pump truck for sale with 8 cubic meter mixing capacity is equipped with ultra-high strength integrated auxiliary frame, ensuring its
More DetailsProduct Information
The used concrete boom pump truck for saleis a main equipment of construction machinery during commercial concrete transportation and deposition.
used concrete boom pump truck for sale has the advantages of flexibility, high efficiency and good pouring quality, so it plays an important role in infrastructure construction and national economic development
The concrete pump truck is used as one of the main equipments that transports concrete. The vibration and dependability directly influence the progress of construction progress
Item | Unit | HDT5401THB-48/5 | HDT5420THB-52/5 | HDT5350THB-42/4 | HDT5401THB-45/5 | HDT5291THB-37/4 | HDT5291THB-39/4 |
output in theory | m3/h | 125 | 125 | 125 | 125 | 125 | 125 |
index of the pump carry capacity | Mpa.m3/h | 586 | 586 | 586 | 586 | 586 | 586 |
theoretic pumping pressure | Mpa | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 |
bucket volume | L | 700 | 700 | 700 | 700 | 700 | 700 |
height of top surface of bucket | mm | 1400 | 1400 | 1400 | 1400 | 1370 | 1370 |
model of distribution valve | S Valve | S Valve | S Valve | S Valve | S Valve | S Valve | |
max. operation radius | m | 43.7 | 47.8 | 38 | 40.7 | 32.6 | 34.7 |
max. operation height | m | 47.7 | 51.8 | 41.8 | 44.7 | 36.6 | 38.7 |
max. operation depth | m | 34.3 | 39.8 | 29 | 31.3 | 25.5 | 27 |
open height of boom | mm | 9065 | 9400 | 8600 | 8495 | 8450 | 8830 |
distance between front landing legs | mm | 9780 | 10295 | 8820 | 9550 | 7058 | 6800 |
distance between rear landing legs | mm | 9860 | 10650 | 8500 | 9550 | 6848 | 7000 |
distance between front & rear landing legs | mm | 9470 | 10310 | 8490 | 9190 | 6790 | 7432 |
diameter of delivery pipe | mm | 125 | 125 | 125 | 125 | 125 | 125 |
length of hose pipe | m | 3 | 3 | 3 | 3 | 4 | 4 |
rotary range of boom | 365° | 365° | 365° | 365° | 365° | 365° | |
quantity of boom | 5 | 5 | 4 | 5 | 4 | 4 | |
rotary angle of each boom | ° | 91/180/180/180/270 | 90/180/180/180/270 | 92/180/180/240 | 91/180/180/180/270 | 92/180/180/270 | 91/180/180/180/270 |
wire line control distance | m | 33 | 33 | 33 | 33 | 33 | 33 |
romote control distance | m | 200 | 200 | 200 | 200 | 200 | 200 |
max. speed | km/h | 85 | 80 | 85 | 80 | 90 | 90 |
min. turn radius | mm | 12000 | 12500 | 12100 | 12100 | 8800 | 8800 |
brake distance | m | 10 | 10 | 10 | 10 | 7 | 7 |
approach angle | ° | 16 | 16 | 16 | 16 | 16 | 16 |
departure angle | ° | 11 | 11 | 11 | 11 | 11 | 11 |
chassis model | HOWO ZZ5437S4667C(HOWO Engine) | HOWO ZZ5437S5067C1(HOWO Engine) | HOWO ZZ5437S4667C | HOWO ZZ5437S4667C | HOWO ZZ5307N4647C | HOWO ZZ5307N4647C | |
wheel base between the first & the second axle | mm | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 |
wheel base between the second & the third axle | mm | 4600 | 5000 | 4600 | 4600 | 4600 | 4600 |
wheel base between the third & the fourth axle | mm | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 |
front tread | mm | 2022 | 2022 | 2022 | 2022 | 2022 | 2022 |
rear tread | mm | 1830 | 1830 | 1830 | 1830 | 1830 | 1830 |
max. engine output power | kw | 275(2200r/min) | 275(2200r/min) | 275(2200r/min) | 275(2200r/min) | 247(2200r/min) | 247(2200r/min) |
max. engine output torque | n.m | 1500 /(1100~1600 r/min) | 1500 /(1100~1600 r/min) | 1500 /(1100~1600 r/min) | 1500 /(1100~1600 r/min) | 1350(1100-1600r/min) | 1350(1100-1600r/min) |
max, gradient ability | % | 37 | 37 | 37 | 35 | 35 | 35 |
fuel consumption | L/100km | 40 | 40 | 38 | 40 | 34 | 34 |
(××)out dimension(L×W×H) | mm | 13300×2500×4000 | 13990×2500×4000 | 13650×2490×3960 | 13300×2500×4000 | 12000×2490×3850 | 12500×2490×3950 |
total weight | kg | 40000 | 42000 | 35000 | 40000 | 29000 | 29500 |
Products characteristics of used concrete boom pump truck for sale
1.The power system is consisted by technical diesel engine or electrical engine.
2.It can drive the pumping system directly which samplized the linkage structure and improved the efficiency.
3.Strong power system reduced the rate of occuring faults;
4.The elements of electrical controlling system is adopted Japan and Gemany's original parts. The excellent assembly
quality fully guaranteed the function of electrical controlling system.
5.The special design of hopper and vane reduces the space of mixing blind angle thus makes the machine suitable for many kinds of concrete.;
