Product Information

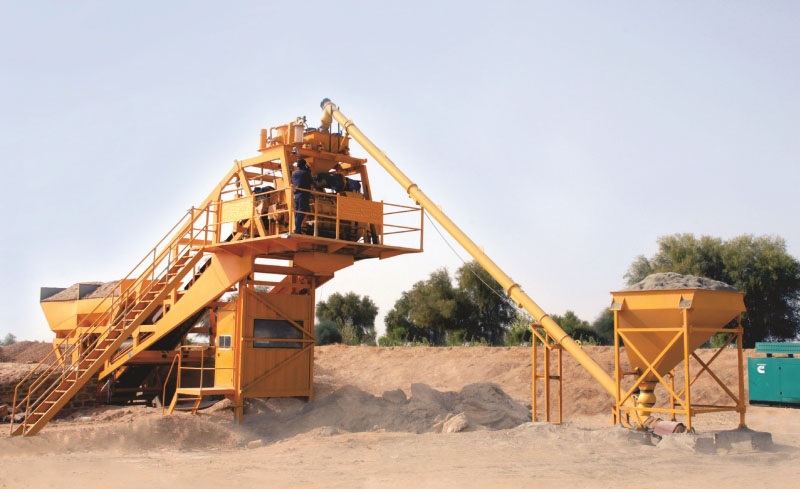

The mobile concrete batching plant priceis a portable, productive, reliable, and cost effective piece of equipment used to produce batches of concrete at most any location. Because it is portable, users can easily transport the equipment to a new location and begin to produce concrete batches. mobile concrete batching plant price can be used wet or dry, and has a wide array of configurations and production types including: Ready Mix, Precast & Prestress, Central Mix, and RCC.

Haomei machinery’s mobile concrete batching plant price  are ideal for highways, road construction, housing development, commercial yards, parking lots, sidewalks, wind farm bases, warehouse flooring, and much more. The plants feature:

11 cubic yard aggregate bins with pneumatic discharge doors; folds and partly dismantles for transport
Weighing belt that transports the material to mixer
Cement weigh hopper with aeration and pneumatic vibrator; pneumatic outlet butterfly valve
Water weigher with pneumatic butterfly valve and pipework to mixer
Twin additive meters with (2) pumps; more additive meters can be added as options
Stairs and access walkways around mixer; fold and dismantle for transport
Chassis structure with support legs; twin axle bogie and fifth wheel coupling
Built-in secure cabin positioned at truck loading area
Automatic control system with load cells, starter panel, pneumatics panel
Water connection pipe at rear of machine to allow supply to be connected
Compressor with receiver and dryer
Discharge chute with rubber sock
Specifications by Model


YHZS60 mobile concrete batching plant price



Mixer:     JS1000
Output capacity: 52 cubic yards per hour
Batch size: 1.9 cubic yards
Dimensions: 60’ L x 10’ W x 13.8’ H
Weight: 68,564 pounds
Transbatch 60

Mixer: JS1700
Output capacity: 78 cubic yards per hour
Batch size: 1.9 cubic yards
Dimensions: 60’ L x 10’ W x 13.8’ H
Weight: 73,855 pounds
Transbatch 100

Mixer: JS3000
Output capacity: 130 cubic yards per hour
Batch size: 3.3 cubic yards
Dimensions: 60’ L x 10’ W x 13.8’ H
Weight: 80,513 pounds
Options

Haomei machinery has a range of optional extras enabling customization of your mobile concrete batching plant price  to provide a superior solution for your specific application requirements. Available optional extras include:

Silo sizes ranging from 30 tons to 1,000 tons
Precast bases to mount silos for mobile and remote applications
Additional admixtures
Wash-out system for automatic mixer cleaning
Fully winterized enclosure for plant, including heating systems for aggregates, water, and mixer
Alternative automated control systems
Additional weigh hopper for warm climates
