dry concrete mix weight

1275 items in Type

dry concrete mix weight are preferred for small-scale concrete production requirements and projects where the cost minimization is of great importance.

More Details

Product Details
Related Products

Product Information

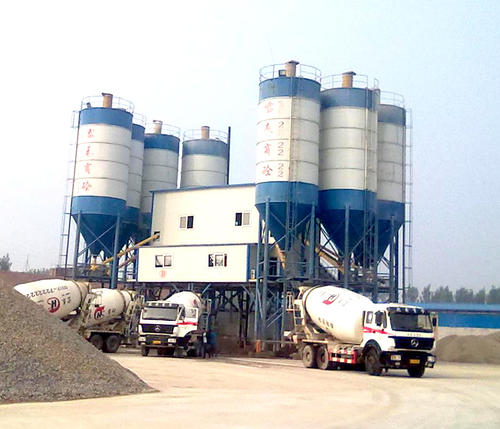

A dry concrete mix weight also known as Transit Mix Plant, weighs sand, gravel and cement in weigh batchers via digital or manual scales . All the ingredients then are discharged into a chute which discharges into a truck. Meanwhile, water is either being weighed or volumetrically metered and discharged through the same charging chute into the mixer truck. These ingredients are then mixed for a minimum of 70 to 100 revolutions during transportation to the job site.

Like a mobile concrete plant and a stationary concrete plant, the dry concrete mix weight consists of cement silos, feeding system, control system, weighing system and mixing system. Cement silos are the catching and supply of raw materials such as cement, sand and fly ash as production necessitates. The feed system is a bridge to connect the aggregates and the mixing system. The accuracy of the weighing system determines the amount of mixed materials, and therefore has a great influence on the quality of the mixed concrete. The mixing system only mixes the materials without water. As a result, the mixer truck is important for transporting and mixing concrete. The control system is the core of the whole plant. Workers can reach full automation by using concrete equipment in the control room.

Technical parameters of dry concrete mix weight

Model	HZS25	HZS35	HZS50	HZS60	HZS75	HZS90	HZS120	HZS150	HZS180
Discharging Capacity (L)	500	750	1000	1000	1500	1500	2000	2500	3000
Charging Capacity(L)	800	1200	1600	1600	2400	2400	3200	4000	4800
Maximum Productivity(m³/h)	25	35	50	60	75	90	120	150	180
Charging Model	Skip Hopper	Skip Hopper	Skip Hopper	belt conveyor	Skip Hopper	belt conveyor	belt conveyor	belt conveyor	belt conveyor
Standard Discharging Height(m)	1.5~3.8	2~4.2	4.2	4.2	4.2	4.2	3.8~4.5	4.5	4.5
Number of Species of Aggregate	2~3	2~3	3~4	3~4	3~4	4	4	4	4
Maximum Aggregate Size(mm)	≤60mm	≤80mm	≤80mm	≤80mm	≤80mm	≤80mm	≤120mm	≤150mm	≤180mm
Cement/Powder Silo Capacity(set)	1×100T	2×100T	3×100T	3×100T	3×100T	3×100T	4×100T or 200T	4×200T	4×200T
Mixing Cycle Time(s)	72	60	60	60	60	60	60	30	30
Total Installed Capacity(kw)	60	78.5	111	145	110	198.06	210	230	288

Advantages of dry concrete mix weight
It has higher capacity and lower energy consumption because concrete can be mixed without water
- The cooperation between thedry concrete mix weight and the mixer truck can increase productivity and save time.
- The fresh concrete can be used because of the mixer trucks arrive at the construction site.
- It shortens the construction and enhances productivity.
- It’s got lower power consumption when compared to the wet mix plant.
- Operating costs of dry concrete mix weight are relatively low
- Allows concrete to be mixed more efficiently.
- It could be the short time period of maintenance needed when compared with wet mix plants.
- As in other mixing plants, such as mobile and stationary concrete plants, the dry concrete plant is also automated.
- If the site is quite long, it is an ideal choice for dry concrete mix weight manufacturers. While the mixer truck going to the construction site, it may keep the rotation order to prevent tampering, hardening of the mixed concrete and to ensure the freshness of the materials.
- Dry batch concrete vegetation is much-welcomed modern concrete production equipment that is constantly significantly assist in the development and development of modern roads, bridges and various concrete construction works.
