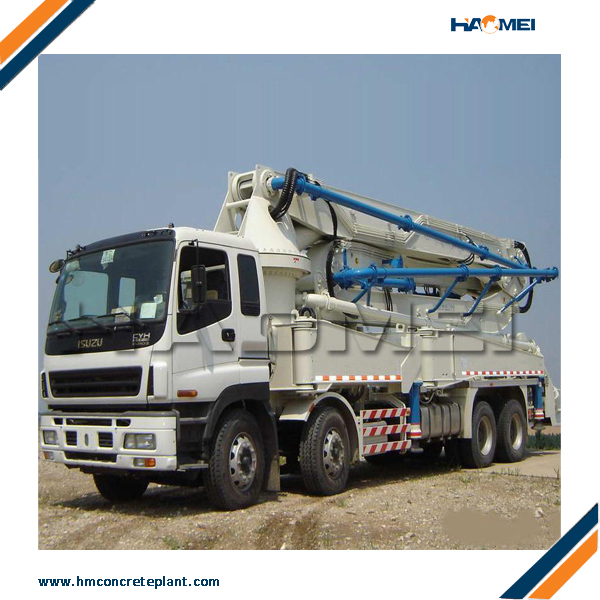

concrete pump truck business for sale

1410 items in Type

For the concrete pump truck business for sale , it is a truck without mixer drum. For the concrete truck, it has the mixer drum to mix concrete on the way to the construction site.

More Details

Product Details
Related Products

Product Information

The concrete pump truck business for saleis a main equipment of construction machinery during commercial concrete transportation and deposition.
concrete pump truck business for sale has the advantages of flexibility, high efficiency and good pouring quality, so it plays an important role in infrastructure construction and national economic development
The concrete pump truck is used as one of the main equipments that transports concrete. The vibration and dependability directly influence the progress of construction progress

Item	Unit	HDT5401THB-48/5	HDT5420THB-52/5	HDT5350THB-42/4	HDT5401THB-45/5	HDT5291THB-37/4	HDT5291THB-39/4
output in theory	m3/h	125	125	125	125	125	125
index of the pump carry capacity	Mpa.m3/h	586	586	586	586	586	586
theoretic pumping pressure	Mpa	8.5	8.5	8.5	8.5	8.5	8.5
bucket volume	L	700	700	700	700	700	700
height of top surface of bucket	mm	1400	1400	1400	1400	1370	1370
model of distribution valve		S Valve	S Valve	S Valve	S Valve	S Valve	S Valve
max. operation radius	m	43.7	47.8	38	40.7	32.6	34.7
max. operation height	m	47.7	51.8	41.8	44.7	36.6	38.7
max. operation depth	m	34.3	39.8	29	31.3	25.5	27
open height of boom	mm	9065	9400	8600	8495	8450	8830
distance between front landing legs	mm	9780	10295	8820	9550	7058	6800
distance between rear landing legs	mm	9860	10650	8500	9550	6848	7000
distance between front & rear landing legs	mm	9470	10310	8490	9190	6790	7432
diameter of delivery pipe	mm	125	125	125	125	125	125
length of hose pipe	m	3	3	3	3	4	4
rotary range of boom		365°	365°	365°	365°	365°	365°
quantity of boom		5	5	4	5	4	4
rotary angle of each boom	°	91/180/180/180/270	90/180/180/180/270	92/180/180/240	91/180/180/180/270	92/180/180/270	91/180/180/180/270
wire line control distance	m	33	33	33	33	33	33
romote control distance	m	200	200	200	200	200	200
max. speed	km/h	85	80	85	80	90	90
min. turn radius	mm	12000	12500	12100	12100	8800	8800
brake distance	m	10	10	10	10	7	7
approach angle	°	16	16	16	16	16	16
departure angle	°	11	11	11	11	11	11
chassis model		HOWO ZZ5437S4667C(HOWO Engine)	HOWO ZZ5437S5067C1(HOWO Engine)	HOWO ZZ5437S4667C	HOWO ZZ5437S4667C	HOWO ZZ5307N4647C	HOWO ZZ5307N4647C
wheel base between the first & the second axle	mm	1800	1800	1800	1800	1800	1800
wheel base between the second & the third axle	mm	4600	5000	4600	4600	4600	4600
wheel base between the third & the fourth axle	mm	1350	1350	1350	1350	1350	1350
front tread	mm	2022	2022	2022	2022	2022	2022
rear tread	mm	1830	1830	1830	1830	1830	1830
max. engine output power	kw	275(2200r/min)	275(2200r/min)	275(2200r/min)	275(2200r/min)	247(2200r/min)	247(2200r/min)
max. engine output torque	n.m	1500 /(1100~1600 r/min)	1500 /(1100~1600 r/min)	1500 /(1100~1600 r/min)	1500 /(1100~1600 r/min)	1350(1100-1600r/min)	1350(1100-1600r/min)
max, gradient ability	%	37	37	37	35	35	35
fuel consumption	L/100km	40	40	38	40	34	34
（××）out dimension(L×W×H)	mm	13300×2500×4000	13990×2500×4000	13650×2490×3960	13300×2500×4000	12000×2490×3850	12500×2490×3950
total weight	kg	40000	42000	35000	40000	29000	29500

Products characteristics of concrete pump truck business for sale

1.The power system is consisted by technical diesel engine or electrical engine.

2.It can drive the pumping system directly which samplized the linkage structure and improved the efficiency.

3.Strong power system reduced the rate of occuring faults;

4.The elements of electrical controlling system is adopted Japan and Gemany's original parts. The excellent assembly

quality fully guaranteed the function of electrical controlling system.

5.The special design of hopper and vane reduces the space of mixing blind angle thus makes the machine suitable for many kinds of concrete.;
