concrete mixing plant price

1354 items in Type

Haomei machinery is a full-service dealer for all sizes and types of concrete mixing plant price, both new and used, from some of the top names in the industry

More Details

Product Details
Related Products

Product Information

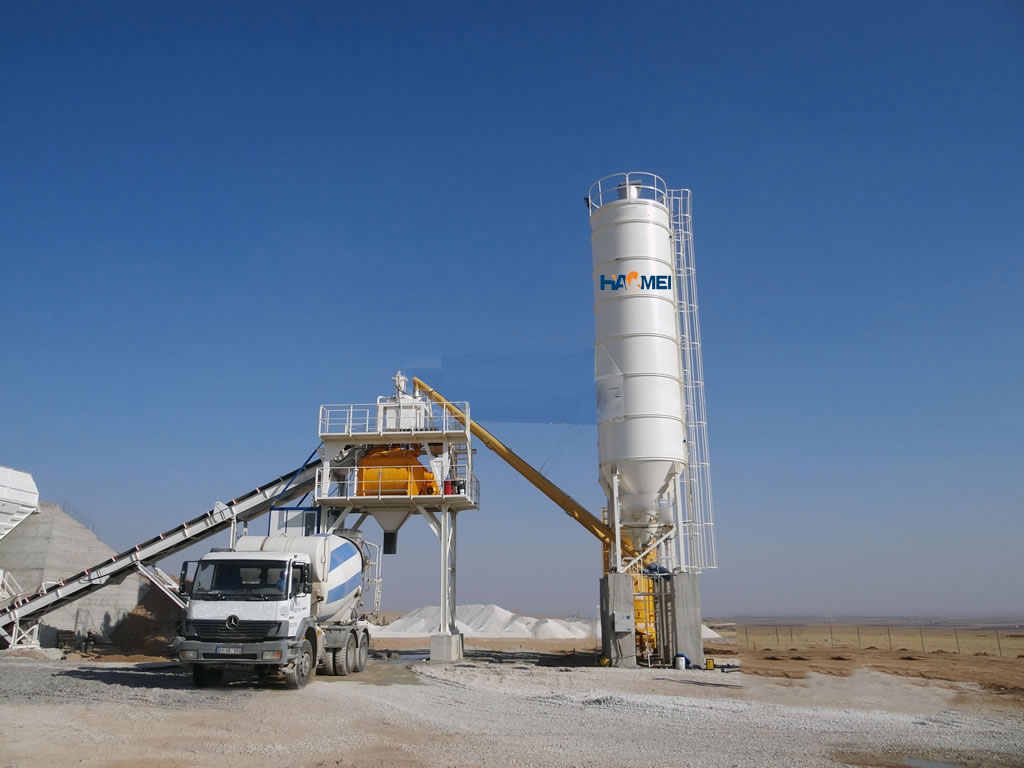

The concrete mixing plant price is a plant which is an ideal equipment to produce the commercial concrete which is used to produce plastic concrete, dry concrete and so on. Adopt twin horizontal shaft forced type concrete mixer or planetary mixer, it adopts two heavy duty gear box, electrical lubrication system, hydraulic system, durable mixing device,etc. Equipped with accurate weighing system (aggregate,cement,water,additive), PC+PLC control, vividly display the production process on the screen, so that the operator can monitor in real time; save the data of production perimeters in the computer, print daily, monthly or yearly statistic reports of production. Because of its high efficiency, it is being widely used in big and medium scale construction project, road and bridge, and the factories to produce the pre-fabricated concrete component.

Haomei concrete mixing plant price are built with high-quality materials and engineered to guarantee component life. Every plant is designed for high productivity and each is available in stationary, semi-mobile and fully mobile versions. Other options include precast component and high performance plants. All plant types also integrate modular designs that provide flexibility so you can customise your plant to fit your needs – now or in the future.

Model		HZS25	HZS35	HZS50	HZS75
Global parameter	Maximum productivity (m3/h)	25	35	50	75
	Discharging height (m)	1.5-3.8	1.6-3.8	4.2	4.2
	Working cycle time(s)	72	72	72	72
	Outline dimension(mm)	11693×13060× 17245	12922×13000× 17245	15689×12500× 18704	17608×12500× 18704
	Total power (kw)	50	75	88	110
Mixer	Model	JS500	JS750	JS1000	JS1500
Batcher	Model	PLD800	PLD1200	PLD1600	PLD2400
Pneumatic system	Air compressor	1.0-7	1.0-7	1.5-7	1.8-7
	Discharge pressure(MPa)	0.8	0.8	0.8	0.8
	Displacement (m3/min)	1.67	1.67	1.67	1.67
	Motor power	5.5	5.5	7.5	11
Measurement system	Aggregate weighing accuracy	±2%	±2%	±2%	±2%
	Cement weighing accuracy	±1%	±1%	±1%	±1%
	Water weighing accuracy	±1%	±1%	±1%	±1%
	Additive weighing accuracy	±1%	±1%	±1%	±1%

concrete mixing plant price Main features:

Theory Capacity:25-75m³/h
Host using JS twin-shaft forced type concrete mixer good mixing quality and high efficiency.
Aggregate batching machine uses ingredients measurement accuracy high production efficiency.
Cement water liquid additive ingredients are used in electronic scales of measurement high dosing accuracy.
Siphon pump pressurized water system uses the principle of the water flow speed spray evenly.
Electrical control system main components are all imported reliable performance easy operation the print function.
Control system:PC+PLC control system ensures high reliability Simple/Standard for optional as your requirements.
Different Layout Options according to Customer Requirements.
The Quantity of cement silo and screw conveyor can be choosed by users.
Modular Design Space-Saving Integrated Design Easy Installation and Removal.
