concrete mixer truck width sale can produce amount of concrete for your construction, which has advantages of small footprint and high mobility
More DetailsProduct Information

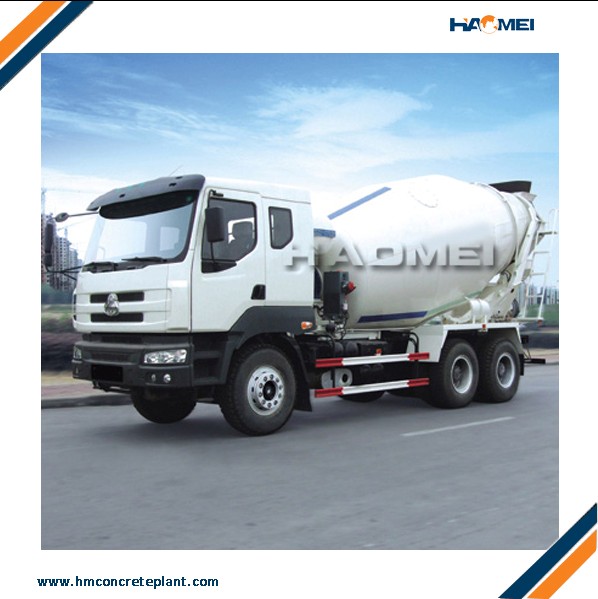

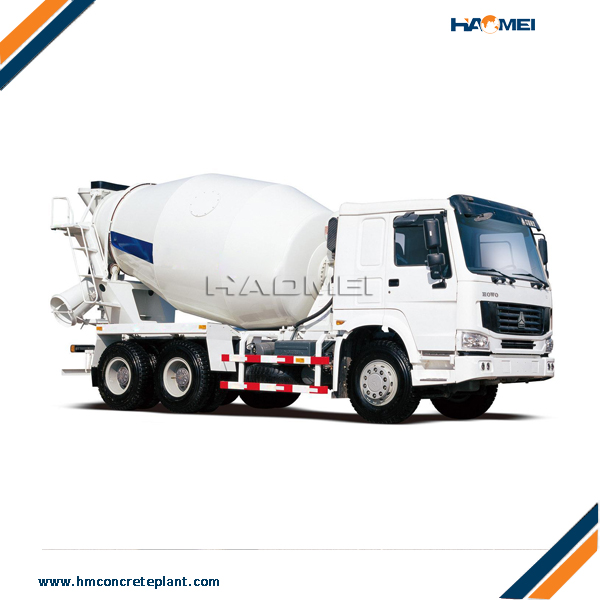

The concrete mixer truck width is a main equipment of construction machinery during commercial concrete transportation and deposition.
concrete mixer truck width has the advantages of flexibility, high efficiency and good pouring quality, so it plays an important role in infrastructure construction and national economic development
haomei machinery concrete mixer truck width belongs to a special truck, which is used to transport ready-mix concrete in construction projects. Our concrete mixer truck has the dual function of transportation and agitation, which can be transported to ensure the quality of concrete delivery and achieve concrete delivery of high-performance and all mechanized operations within a certain distance. Our concrete mixer truck includes chassis and special concrete equipment for mixing and transportation, and it is widely used in urban construction, highways, railways, utilities and other concrete construction projects. In addition, the use of concrete mixer truck greatly improves labor productivity and construction quality.
Model | HM6-D | HM8-D | HM9-D | HM10-D | HM12-D | HM14-D | HM16-D | |
Specification | Unit | HM6-D | HM8-D | HM9-D | HM10-D | HM12-D | HM14-D | HM16-D |
Mixing Capacity | m³ | 6 | 8 | 9 | 10 | 12 | 14 | 16 |
Tank Volume | m³ | 9.96 | 12.8 | 14.7 | 17.05 | 17.93 | 20.1 | 24.1 |
Feeding Speed | m³/min | ≥3 | ≥3 | ≥3.5 | ≥3.5 | ≥3.5 | ≥3.5 | ≥3.5 |
Discharging Speed | m³/min | ≥1.5 | ≥1.5 | ≥3 | ≥3 | ≥3 | ≥3 | ≥3 |
Residual Ratio of Discharging | % | ≤0.5% | ≤0.5% | ≤0.5% | ≤0.5% | ≤0.5% | ≤0.5% | ≤0.5% |
Water Supply System | Air pressure | Air pressure | Air pressure | Air pressure | Air pressure | Air pressure | Air pressure | |
Water Tank Volume | L | 260 | 260 | 300 | 300 | 400 | 400 | 400 |
Overall Dimension | mm | 8450*2496*3835 | 8715*2496*3800 | 9050*2496*3750 | 9050*2496*3750 | 9880*2496*3920 | 10300*2496*3920 | 10850*2496*3980 |
Chassis Model | Steyr | HOWO | HOWO | HOWO | HOWO | HOWO | HOWO | |
Clutch | φ | φ430 Monolithic dry type | φ430 Monolithic dry type | φ430 Monolithic dry type | φ430 Monolithic dry type | φ430 Monolithic dry type | φ430 Monolithic dry type | φ430 Monolithic dry type |
Min Ground Clearance | mm | 297 | 314 | 314 | 314 | 245 | 245 | 245 |
Max Speed | km/h | 75 | 90 | 90 | 90 | 86 | 90 | 90 |
Engine Max Output Power | kw | 247 | 276 | 276 | 276 | 340 | 340 | 340 |
Emission Standard | Euro Ⅲ | Euro Ⅲ | Euro Ⅲ | Euro Ⅲ | Euro Ⅲ | Euro Ⅲ | Euro Ⅲ | |
Rated Load | kgs | 12600 | 13500 | 13500 | 13500 | 15000 | 16000 | 16600 |
Overall Weight | kgs | 25000 | 25000 | 25000 | 25000 | 25000 | 31000 | 31000 |
Wheelbase | mm | 3225+1350 | 3225+1350 | 3825+1350 | 3825+1350 | 4025+1350 | 1800+3200+1350 | 1800+3600+1350 |
concrete mixer truck width Advantages
1. Fast unloading speed, 0.43cbm/ R, conventional 0.35cbm/r, 19% higher than the average product
2. Mixing evenly, special blade spiral design, to achieve three-dimensional mixing of concrete, mixing evenly, no segregation, (no segregation, determines the quality of the building works)
3. Complete discharge, the residual rate is 0.4%, the average product is 0.6%, 33% higher than the average product
4. Mechanical agitation use wear-resisting material, in the easy wearing part uses the wear-resisting material to strengthen, generally the tank body uses 5-8 years. Quick feeding and unloading, mixing evenly, no segregation, complete discharge, low residual rate, good after-sales service, large loading capacity.
