concrete batch plant automation
-1744 items in Type
Haomei machinery specializes in building the perfect concrete batch plant automation for your applications. We offer Dry Batch plants and Wet batching plants as well as plant upgrages, .
More DetailsProduct Information

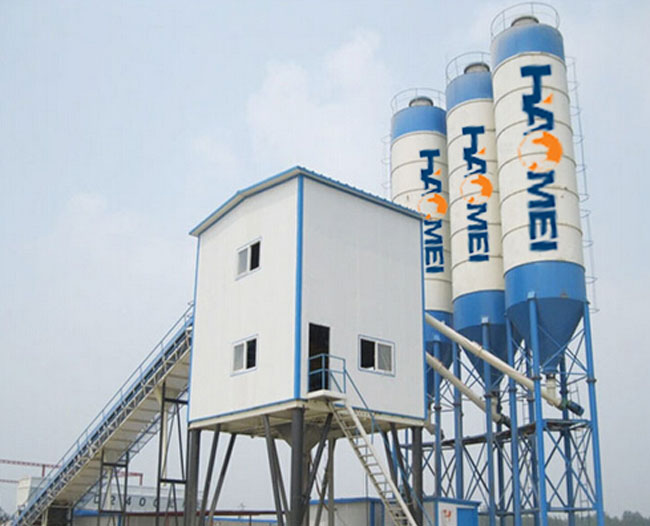

A concrete batch plant automation, also known as a concrete plant, is a facility that combines raw materials such as sand, water, aggregate, cement, and others to create ready-mix concrete.
concrete batch plant automation use trucks to move product from the plant to its intended delivery point and to deliver raw materials (aggregates) to the plant. On average, a ready-mix concrete batch plant automation employs 10-20 trucks that make a total of 75 trips per day combined.
Parameters of concrete batch plant automation:
| Model | HZS60 | HZS90 | HZS120 | HZS180 | HZS240 |
| Theoretical output(m³/h) | 60 | 90 | 120 | 180 | 240 |
| Mixer model | JS1000 | JS1500 | JS2000 | JS3000 | JS4000 |
| Output per batch(m³) | 1 | 1.5 | 2 | 3 | 4 |
| Aggregate batcher | PLD2400 | PLD2400 | PLD3200 | PLD4800 | PLD6400 |
| Total power(KW) | 110 | 145 | 160 | 205 | 340 |
| Aggregate weighing accuracy(%) | (0-3000)kg±2% | (0-4000)kg±2% | (0-4500)kg±2% | (0-4500)kg±2% | (0-6000)kg±2% |
| Cement weighing accuracy(%) | (0-600)kg±1% | (0-1000)kg±1% | (0-1200)kg±1% | (0-1800)kg±1% | (0-2400)kg±1% |
| Water weighing accuracy(%) | (0-400)kg±1% | (0-400)kg±1% | (0-600)kg±1% | (0-800)kg±1% | (0-1000)kg±1% |
| Fly ash weighing accuracy(%) | (0-400)kg±1% | (0-400)kg±1% | (0-600)kg±1% | (0-800)kg±1% | (0-700)kg±1% |
| Additive weighing accuracy(%) | (0-40)kg±1% | (0-40)kg±1% | (0-50)kg±1% | (0-50)kg±1% | (0-120)kg±1% |
| Discharge height(m) | 3.8-4.2 | ||||
| Max. aggregate dia.(mm) | 80-100 | ||||
| Cement silo and screw conveyor | On request | ||||
| Total weight (ton) | 46 | 60 | 71 | 87 | 112 |
| Overall dimension(LxWxH)(m) | 33.8x14.8x19.4 | 38x16x19.4 | 44x18x19.4 | 58.5x23.5x22 | 60x25x22 |
concrete batch plant automation Features
1.Adopting horizontal twin-shaft compulsory mixer
2.The aggregate is measured accumulatively by electric scale
3.Water and additive is measured accurately under the control of the computer
4.The whole machine is controlled by computer which makes operation easy
5.The main electric components are from famous brand.
